Products > Double Side Planer > YA-610AD. YA-635ARD. YA-610ADS/635ARDS

DOUBLE SIDE PLANER

DOUBLE SIDE PLANER
YA-610AD. YA-635ARD.
YA-610ADS/635ARDS

YA-610AD. YA-635ARD. YA-610ADS/635ARDS

Scope of application：Solid wood / Plastics

MACHINE IDENTIFICATION CODE :

*** Planing width
A Heavy duty
B Light duty
C Oversized Columns elevation
R Helical cutterhead
D Vertical NC control
S Synchronized conveyor table

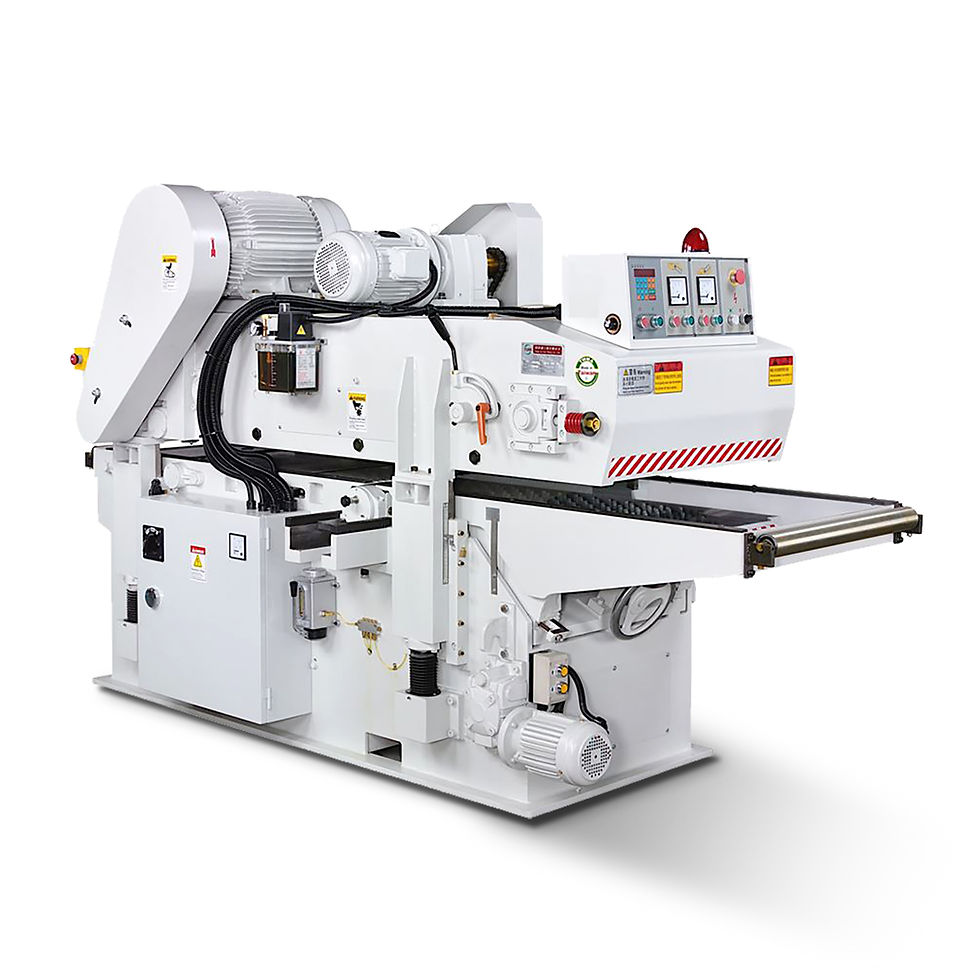

YA-610A.635A

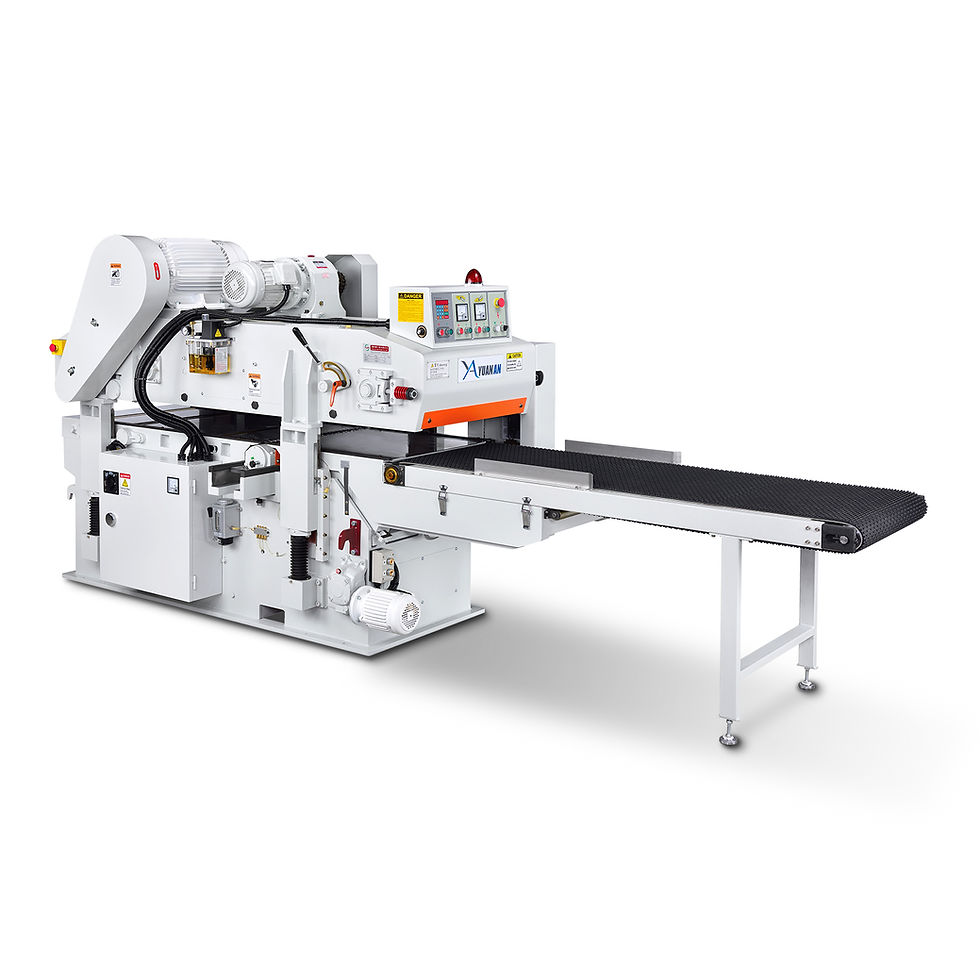

YA-635ARDS

YA-610A.635A

01.

Automatic Lubricator

The machine is equipped with an automatic lubricator for delivering oil to vital machine parts such as the caterpillar chain slide ways.
This ensures smooth running of the chain at all times, while making machine maintenance a simpler process.

02.

Heavy Duty Helical Cutterhead (Optional)

This cutterhead is specially designed with a particular cutting angle, providing low cutting resistance, low noise and high productivity, even for low horsepower machine.

03.

Hand Chrome Plated Table

The table surface is hard chrome plated for maximum wear resistance and upgrading workpiece feeding effect.

04.

Digital Position Controller

Thickness of cut can be set by the digital position controller thereby providing high accuracy thickness control.

05.

Frequency Inverter

Upon request, the feed speed can be controlled by a frequency inverter (5-18m/min).
It provides variable speed changes for cutting various hard and soft wood materials.

06.

Convenient knife setting

The bottom cutterhead can be quickly pulled out from the side for easy and efficient knife setting.

FEATURES：

• Sectional infeed roller and pressure plate handle workpieces with thickness variation.
• The table is hard chrome plated and precision ground providing a smooth feeding effect and maximum wear resistance.
• Y-delta motor starting.
• The infeed pressure device features overlap layout (optional), without clearance, ensuring uniform feeding pressure. Also allows for feeding narrow workpieces.
• The two feeding systems have overload protection devices to avoid machine damage.
• The cutterheads run on SKF bearings for dependable running performance and long bearing life.
• Automatic lubricator for vital machine parts such as conveyor and chain.
• Professional oil should be used on chain parts.

CUTTERHEAD：

01. HMS Series

• Spiral Cutterhead With Throw Away Knives.
• Square-edge inserts.
(14x14x2.0mm, 15x15x2.5mm)
• 6 slots standard design.

02. HMR Series

• Spiral Cutterhead With Throw Away Knives.
• 150mm radius shaped inserts.
(15x15x2.5mm R150)
• 6 slots standard design.

03. HMD Series

• Heavy Duty Spiral Cutterhead.
• Wedge type with 30121.5mm inserts
• 6 slots are standard design.

SPECIFICATIONS：

Products > Double Side Planer > YA-610AD. YA-635ARD. YA-610ADS/635ARDS

DOUBLE SIDE PLANER

DOUBLE SIDE PLANER YA-610AD. YA-635ARD. YA-610ADS/635ARDS

YA-610AD. YA-635ARD. YA-610ADS/635ARDS

Scope of application：Solid wood / Plastics

MACHINE IDENTIFICATION CODE :

*** Planing width A Heavy duty B Light duty C Oversized Columns elevation R Helical cutterhead D Vertical NC control S Synchronized conveyor table

01.

Automatic Lubricator

The machine is equipped with an automatic lubricator for delivering oil to vital machine parts such as the caterpillar chain slide ways. This ensures smooth running of the chain at all times, while making machine maintenance a simpler process.

02.

Heavy Duty Helical Cutterhead (Optional)

This cutterhead is specially designed with a particular cutting angle, providing low cutting resistance, low noise and high productivity, even for low horsepower machine.

03.

Hand Chrome Plated Table

The table surface is hard chrome plated for maximum wear resistance and upgrading workpiece feeding effect.

04.

Digital Position Controller

Thickness of cut can be set by the digital position controller thereby providing high accuracy thickness control.

05.

Frequency Inverter

Upon request, the feed speed can be controlled by a frequency inverter (5-18m/min). It provides variable speed changes for cutting various hard and soft wood materials.

06.

Convenient knife setting

The bottom cutterhead can be quickly pulled out from the side for easy and efficient knife setting.

FEATURES：

CUTTERHEAD：

01. HMS Series

​• Spiral Cutterhead With Throw Away Knives. • Square-edge inserts. (14x14x2.0mm, 15x15x2.5mm) • 6 slots standard design.

02. HMR Series

• Spiral Cutterhead With Throw Away Knives. • 150mm radius shaped inserts. (15x15x2.5mm R150) • 6 slots standard design.

03. HMD Series

• Heavy Duty Spiral Cutterhead. • Wedge type with 30*12*1.5mm inserts • 6 slots are standard design.

SPECIFICATIONS：

* All specifications and design characteristics shown in this catalogue are subject to change without notice.
